Lenses, Isco III and Schneider CineDigitar:

SEE PRICING SECTION FOR CURRENT ISCO-III SALE

The CineSlide is available standalone, or with 2 different High End Ground Glass lenses by Isco and Schneider. The Isco III is the most popular and the most versitile lens covering a wide variety of projectors. Due to it's quality and size, it is virtually "future proof". Both the Schneider and Isco options povide an anamorphic horizontal stretch without affecting throw, or focus of the 16:9 image when removed from the light path. Both provide astigmatism adjustment, something that is unavailable with prism based lenses. These lenses provide the ultimate "scope" experience.

For TechHT provided Isco lenses, we offer an optional (by request) free modification to the Isco lens mount. The stock lens mount does not include a lens locking mechanism so the lens is free to turn in its mount. This can be problematic when the user tries to adjust the astigmatism adjustment ring. Turning this ring can easily turn the lens throwong off your len's "tilt" angle. TechHT modifies the lens mount so the lens is locked in place once it's tilt (roll) has been properly adjusted. This modification is also available to customers who provide their own Isco lens for their CineSlide.

See downloads section for lens installation manual and instructions

The lenses above are the ones we offer with the CineSlide. All other anamorphic lenses are 100% compatible with the CineSlide. Contact us for custom mounts for your lens.

Remote Control

As of 9-20-2008, all retail (non OEM) CineSlides come with an included remote control. Users wishing to purchase a dedicated or replacement remote may do so.



See downloads section for Pronto and Home Theater Master programming files.

Mounts (Click on images below for full size images):

NOTE: "Blue" lines in photos represent possible/typical joist locations (16" O.C.). CineSlide in photos is a frame only, motor not shown.

Photos below are for illustration and planning purposes only. A qualified installer must determine the proper location for all mount points to ceiling structural members. The hardware (screws, bolts, nuts) for attachment to a ceiling or structural member is not shown and not included. See installation kit instructions for minimum hardware recommendations, or consult licensed engineer, or architect.

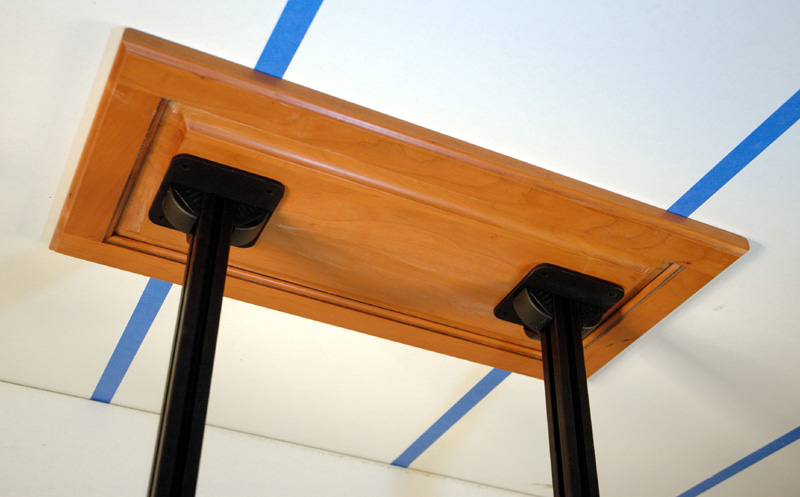

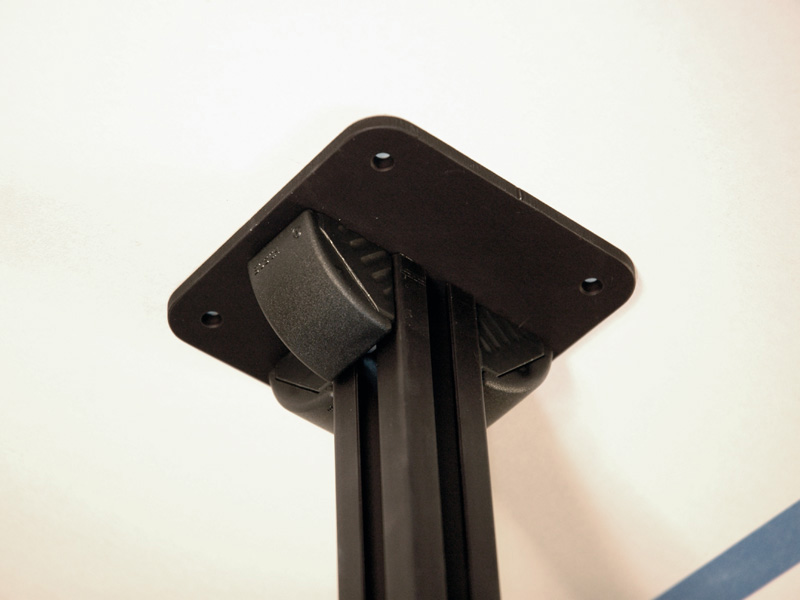

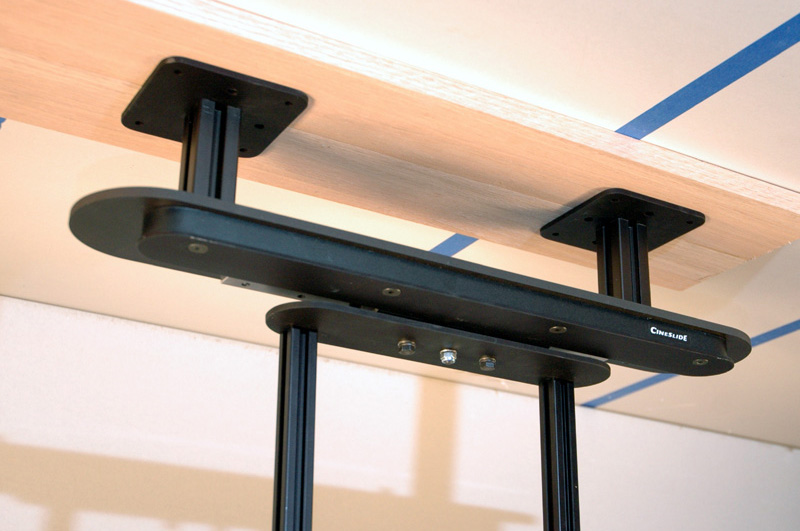

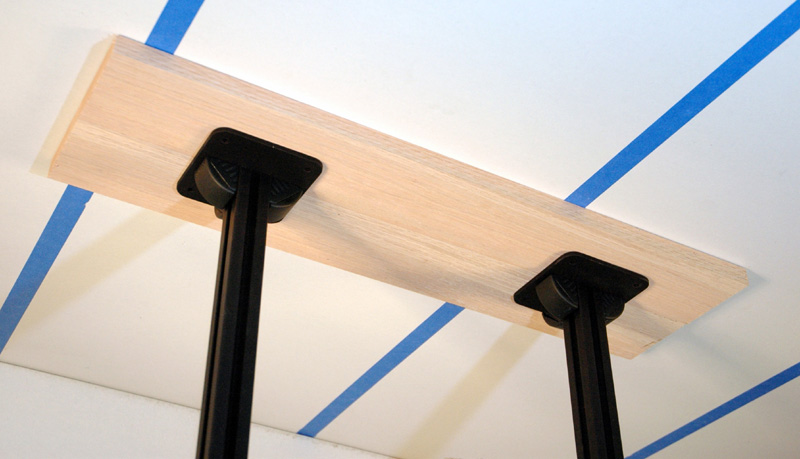

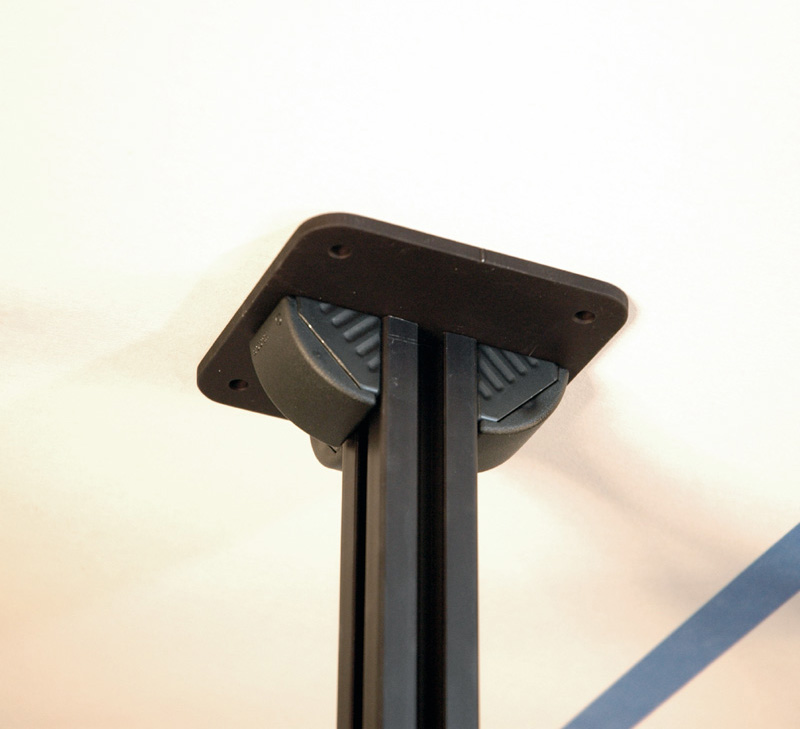

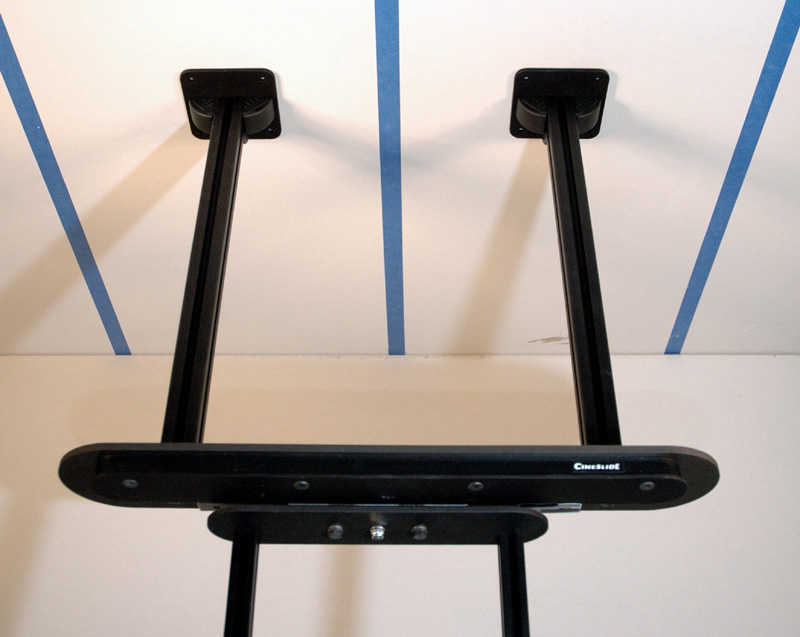

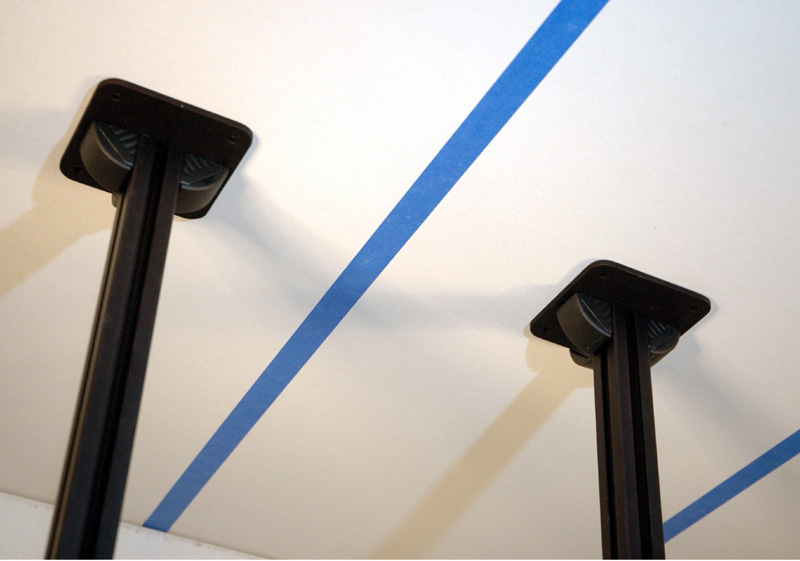

PP kit - MOST POPULAR, Recommended. Post to ceiling plates mount kit - non-adjustable, in forward/rearward (F/R) direction. Left/Right adjustment is avail at device to post interface. Posts attach to plates, plates must attach to a structural plate such as 3/4" plywood. Specify post height, Min=2" (Pictured in low profile photos), Max 19" (pictured). Requires structural plate or member to attach mount "feet" (e.g plywood, or decorative structural ceiling panel, backing panel, etc.). Structural plate must be attached to ceiling structural members. DO NOT ATTACH DIRECTLY TO DRYWALL/WALLBOARD. This kit is available in Short, Medium, and Long mount post lengths (see pricing link).

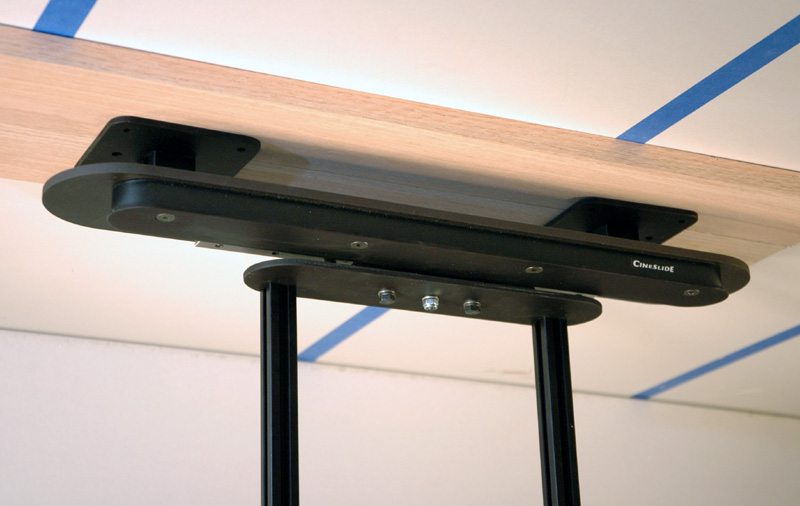

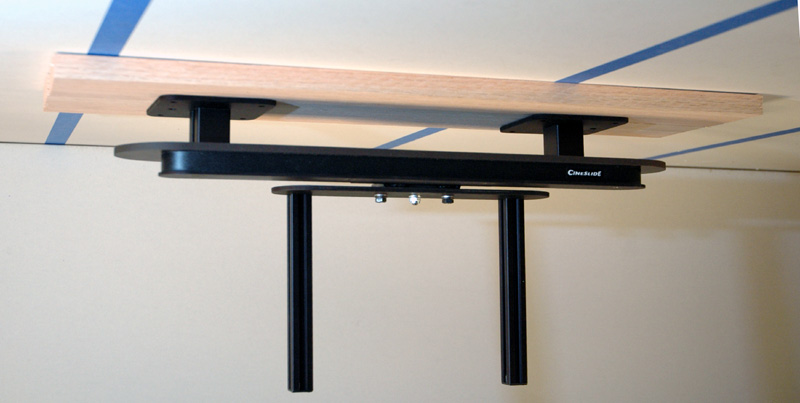

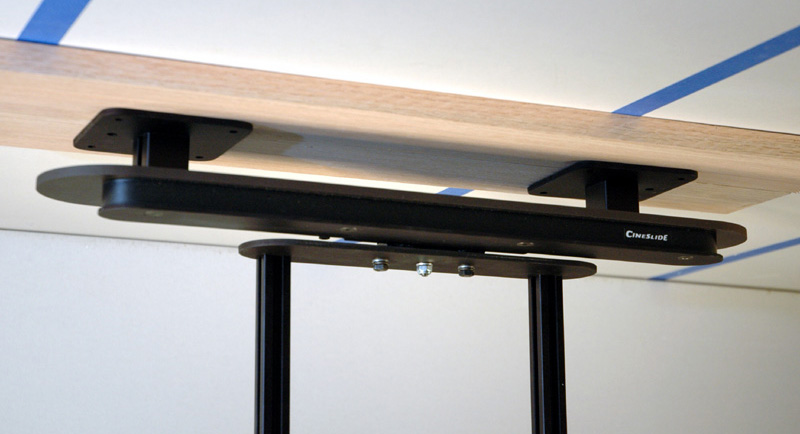

Low profile post length:

SH1 Kit - Shelf mount. Bars mount to rigid mounted shelf and to bottom of CineSide.

Photos available at a later date

PW Kit - Port Wall. Mount Cineslide to the face of a Port wall. Requires minimum 3/4" x 4" solid wood face plate. No ceiling connection required. Relatively simple installation

Photos available at a later date

LP Kit - Low profile basic mount kit. Allows attachment directly to a 3/4" wood plate which is attached to the ceiling. Allows minimum mount height. Or attach to a shelf.



Custom Mounts, custom lengths, design services available upon request
